5W-45W 開關電源適配器
5W Series
| Output Power | Photos Spec | AC Plug Type | Input Range | Model No. | Output Current | Safety Approvals | Dimension L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| 5W USB Series Folding Plug |
 |
USA Japan Canada |
AC100~240V 50/60Hz 0.15A |
QIW-05W-0505U QIW-05W-0510U QIW-05W-03-06UB QIW-05W-06-08UB QIW-05W-08-12UB |
5V/0.5A 5V/1A 3-6V/1.2A 6-8V/0.8A 8-12V/0.6A 5W Max |
UL, cUL, PSE, FCC, CEC |
56.5*50.5*17 56.5*50.5*16 Output:USB Thickness only 15.8 or 16.8mm |
| 5W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.2A |
QIW-05W-0315S QIW-05W-3315S QIW-05W-4207S QIW-05W-4212S QIW-05W-4505S QIW-05W-4510S QIW-05W-0505S QIW-05W-0510S QIW-05W-0610S QIW-05W-7508S QIW-05W-0904S QIW-05W-0965S QIW-05W-1504S QIW-05W-2425S |
3V/1.5A 3.3V/1.5A 4.2V/0.7A 4.2V/1.2A 4.5V/0.5A 4.5V/1A 5V/0.5A 5V/1A 6V/1A 7.5V/0.8A 9V/0.4A 9V/0.65A 12V/0.5A 15V/0.4A 24V/0.25A |
UL, cUL, PSE, FCC, CEC |
546*33.2*23.4 |
| 5W USB Series Folding Plug |
 |
USA Japan Canada |
AC100~240V 50/60Hz 0.2A |
QIW-05W-0505U-1 QIW-05W-0510U-1 |
5V/0.5A 5V/1A |
UL, cUL, PSE, FCC, CEC |
64*48*22.5 Output:USB |
| 5W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.2A |
QIW-05W-0315B QIW-05W-3315B QIW-05W-4207B QIW-05W-4212B QIW-05W-4505B QIW-05W-4510B QIW-05W-0505B QIW-05W-0510B QIW-05W-0610B QIW-05W-7508B QIW-05W-0904B QIW-05W-0965B QIW-05W-1205B QIW-05W-1504B QIW-05W-2425B |
3V/1.5A 3.3V/1.5A 4.2V/0.7A 4.2V/1.2A 4.5V/0.5A 4.5V/1A 5V/0.5A 5V/1A 6V/1A 7.5V/0.8A 9V/0.4A 9V/0.65A 12V/0.5A 15V/0.4A 24V/0.25A |
UL, cUL, PSE, FCC, BSMI, CB, CEC |
47*33*32.8 |
| 5W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.2A |
QIW-05W-0315W QIW-05W-3315W QIW-05W-4207W QIW-05W-4212W QIW-05W-4505W QIW-05W-4510W QIW-05W-0505W QIW-05W-0510W QIW-05W-0610W QIW-05W-7508W QIW-05W-0904W QIW-05W-0965W QIW-05W-1205W QIW-05W-1504W QIW-05W-2425W |
3V/1.5A 3.3V/1.5A 4.2V/0.7A 4.2V/1.2A 4.5V/0.5A 4.5V/1A 5V/0.5A 5V/1A 6V/1A 7.5V/0.8A 9V/0.4A 9V/0.65A 12V/0.5A 15V/0.4A 24V/0.25A |
UL, cUL, PSE, FCC, BSMI, CB, CEC |
49*46*26.2 |
| 5W Series |
 |
Europe | AC100~240V 50/60Hz 0.2A |
QIW-05W-0315T QIW-05W-3315T QIW-05W-4207T QIW-05W-4212T QIW-05W-4505T QIW-05W-4510T QIW-05W-0505T QIW-05W-0510T QIW-05W-0610T QIW-05W-7508T QIW-05W-0904T QIW-05W-0965T QIW-05W-1205T QIW-05W-1504T QIW-05W-2425T |
3V/1.5A 3.3V/1.5A 4.2V/0.7A 4.2V/1.2A 4.5V/0.5A 4.5V/1A 5V/0.5A 5V/1A 6V/1A 7.5V/0.8A 9V/0.4A 9V/0.65A 12V/0.5A 15V/0.4A 24V/0.25A |
TUV/GS, CE, ERP |
46*34*23.5 |
| 5W Series |
 |
England | AC100~240V 50/60Hz 0.2A |
QIW-05W-0315K QIW-05W-3315K QIW-05W-4207K QIW-05W-4212K QIW-05W-4505K QIW-05W-4510K QIW-05W-0505K QIW-05W-0510K QIW-05W-0610K QIW-05W-7508K QIW-05W-0904K QIW-05W-0965K QIW-05W-1205K QIW-05W-1504K QIW-05W-2425K |
3V/1.5A 3.3V/1.5A 4.2V/0.7A 4.2V/1.2A 4.5V/0.5A 4.5V/1A 5V/0.5A 5V/1A 6V/1A 7.5V/0.8A 9V/0.4A 9V/0.65A 12V/0.5A 15V/0.4A 24V/0.25A |
TUV/GS, CE, ERP |
49*46.3*30.5 |
| 5W Series |
 |
China | AC100~240V 50/60Hz 0.2A |
QIW-05W-0315C QIW-05W-3315C QIW-05W-4207C QIW-05W-4212C QIW-05W-4505C QIW-05W-4510C QIW-05W-0505C QIW-05W-0510C QIW-05W-0610C QIW-05W-7508C QIW-05W-0904C QIW-05W-0965C QIW-05W-1205C QIW-05W-1504C QIW-05W-2425C |
3V/1.5A 3.3V/1.5A 4.2V/0.7A 4.2V/1.2A 4.5V/0.5A 4.5V/1A 5V/0.5A 5V/1A 6V/1A 7.5V/0.8A 9V/0.4A 9V/0.65A 12V/0.5A 15V/0.4A 24V/0.25A |
CCC | 46*33.2*23.4 |
| 5W Series |
 |
Australia | AC100~240V 50/60Hz 0.2A |
QIW-05W-0315A QIW-05W-3315A QIW-05W-4207A QIW-05W-4212A QIW-05W-4505A QIW-05W-4510A QIW-05W-0505A QIW-05W-0510A QIW-05W-0610A QIW-05W-7508A QIW-05W-0904A QIW-05W-0965A QIW-05W-1205A QIW-05W-1504A QIW-05W-2425A |
3V/1.5A 3.3V/1.5A 4.2V/0.7A 4.2V/1.2A 4.5V/0.5A 4.5V/1A 5V/0.5A 5V/1A 6V/1A 7.5V/0.8A 9V/0.4A 9V/0.65A 12V/0.5A 15V/0.4A 24V/0.25A |
SAA, C-TICK, MEPS |
60.4*44*26.5 |
| 5W Series Folding Plug |
 |
USA Japan Canada |
AC100~240V 50/60Hz 0.15A |
QIW-05W-03-06UC QIW-05W-06-08UC QIW-05W-08-12UC |
3-6V/1.2A 6-8V/0.8A 8-12V/0.6A 5W Max |
UL, cUL, PSE, FCC, CEC |
56.5*50.5*17 Output:Cable Thickness only 15.8 or 16.8mm |
| 5W Series NEW Changeable plugs |
 |
USA Japan Canada Europe UK Australia China |
AC100~240V 50/60Hz 0.15A |
QIW-05W-03-06UL QIW-05W-06-08UL QIW-05W-08-12UL |
3-6V/1.2A 6-8V/0.8A 8-12V/0.6A 5W Max |
CE, FCC | 62*41*22mm Thickness only 22mm with Changeable AC plugs |
| 5W Series NEW plugs |
 |
USA Japan Canada Europe UK Australia China |
AC100~240V 50/60Hz 0.15A |
QIW-05W-03-06UL QIW-05W-06-08UL QIW-05W-08-12UL |
3-6V/1.2A 6-8V/0.8A 8-12V/0.6A 5W Max |
UL, cUL, TUV/GS, CE, PSE,FCC, ERP |
10W Series
| Output Power | Photos Spec | AC Plug Type | Input Range | Model No. | Output Current | Safety Approvals | Dimension L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| 10W Series |
 |
USA Japan Canada |
AC100~240V 50/60Hz 0.3A |
QIW-10W-0320S QIW-10W-3320S QIW-10W-4516S QIW-10W-0515S QIW-10W-0520S QIW-10W-0618S QIW-10W-0913S QIW-10W-1012S QIW-10W-1210S QIW-10W-1508S |
3V/2A 3.3V/2A 4.5V/1.6A 5V/1.5A 5V/2A 6V/1.8A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
UL, cUL, PSE,FCC |
46*33.2*23.4 |
| 10W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.3A |
QIW-10W-0320B QIW-10W-3320B QIW-10W-4516B QIW-10W-0515B QIW-10W-0520B QIW-10W-0618B QIW-10W-0913B QIW-10W-1012B QIW-10W-1210B QIW-10W-1508B |
3V/2A 3.3V/2A 4.5V/1.6A 5V/1.5A 5V/2A 6V/1.8A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
UL, cUL, PSE,FCC |
47*33*32.8 |
| 10W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.3A |
QIW-10W-0320W QIW-10W-3320W QIW-10W-4516W QIW-10W-0515W QIW-10W-0520W QIW-10W-0618W QIW-10W-0913W QIW-10W-1012W QIW-10W-1210W QIW-10W-1508W |
3V/2A 3.3V/2A 4.5V/1.6A 5V/1.5A 5V/2A 6V/1.8A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
UL, cUL, PSE,FCC |
49*46*26.2 |
12W Series
| Output Power | Photos Spec | AC Plug Type | Input Range | Model No. | Output Current | Safety Approvals | Dimension L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| 12W Series NEW Changeable plugs |
 |
USA Japan Canada Europe England Australia China |
AC100~240V 50/60Hz 0.3A |
QIW-12W-0320L QIW-12W-0515L QIW-12W-0520L QIW-12W-0615L QIW-12W-0618L QIW-12W-0913L QIW-12W-1210L |
3V/2A 5V/1.5A 5V/2A 6V/1.5A 6V/1.8A 9V/1.3A 12V/1A |
FCC, CE | 62*41*22mm Thickness only 22mm with Changeable AC plugs |
| 12W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.3A |
QIW-12W-0320S QIW-12W-3320S QIW-12W-0520S QIW-12W-0620S QIW-12W-0913S QIW-12W-1012S QIW-12W-1210S QIW-12W-1508S |
3V/2A 3.3V/2A 5V/2A 6V/2A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
UL, cUL, PSE,FCC CE, CB |
60.2*44*26.5 |
| 12W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.3A |
QIW-12W-0320B QIW-12W-3320B QIW-12W-0520B QIW-12W-0620B QIW-12W-0913B QIW-12W-1012B QIW-12W-1210B QIW-12W-1508B |
3V/2A 3.3V/2A 5V/2A 6V/2A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
UL, cUL, PSE,FCC, CE, CB, BSMI |
60.2*44*26.5 |
| 12W Series |
 |
England |
AC100~240V 50/60Hz 0.3A |
QIW-12W-0320K QIW-12W-3320K QIW-12W-0520K QIW-12W-0620K QIW-12W-0913K QIW-12W-1012K QIW-12W-1210K QIW-12W-1508K |
3V/2A 3.3V/2A 5V/2A 6V/2A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
CE | 60*49.4*26.5 |
| 12W Series |
 |
Europe |
AC100~240V 50/60Hz 0.3A |
QIW-12W-0320T QIW-12W-3320T QIW-12W-0520T QIW-12W-0620T QIW-12W-0913T QIW-12W-1012T QIW-12W-1210T QIW-12W-1508T |
3V/2A 3.3V/2A 5V/2A 6V/2A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
CE,GS | 60.2*44*26.5 |
| 12W Series |
 |
Europe |
AC100~240V 50/60Hz 0.3A |
QIW-12W-0320C QIW-12W-3320C QIW-12W-0520C QIW-12W-0620C QIW-12W-0913C QIW-12W-1012C QIW-12W-1210C QIW-12W-1508C |
3V/2A 3.3V/2A 5V/2A 6V/2A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
CCC | 60.2*44*26.5 |
| 12W Series |
 |
Europe |
AC100~240V 50/60Hz 0.3A |
QIW-12W-0320A QIW-12W-3320A QIW-12W-0520A QIW-12W-0620A QIW-12W-0913A QIW-12W-1012A QIW-12W-1210A QIW-12W-1508A |
3V/2A 3.3V/2A 5V/2A 6V/2A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
SAA, C-TICK | 60.2*44*26.5 |
| 12W Desktop Series |
 |
USA Japan Canada Europe UK China |
AC100~240V 50/60Hz 0.3A |
QIW-12W-0320I QIW-12W-3320I QIW-12W-0520I QIW-12W-0620I QIW-12W-0913I QIW-12W-1012I QIW-12W-1210I QIW-12W-1508I |
3V/2A 3.3V/2A 5V/2A 6V/2A 9V/1.3A 10V/1.2A 12V/1A 15V/0.8A |
UL, cUL, PSE, FCC, CE, GS, CCC, CB |
60.2*44*26.5 |
15W Series
| Output Power | Photos Spec | AC Plug Type | Input Range | Model No. | Output Current | Safety Approvals | Dimension L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| 15W Series NEW Changeable plugs |
 |
USA Japan Canada Europe England Australia China |
AC100~240V 50/60Hz 0.3A |
QIW-15W-0325L QIW-15W-3325L QIW-15W-0525L QIW-15W-0623L QIW-15W-0916L QIW-15W-1015L QIW-15W-1212L QIW-15W-1510L |
3V/2.5A 3.3V/2.5A 5V/2.5A 6V/2.3A 9V/1.6A 10V/1.5A 12V/1.25A 15V/1A |
FCC, CE | 62*41*22 Thickness only 22mm with Changeable AC plugs |
| 15W Series |
|
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.3A |
QIW-15W-0325S QIW-15W-3325S QIW-15W-0525S QIW-15W-0623S QIW-15W-0916S QIW-15W-1015S QIW-15W-1212S QIW-15W-1510S |
3V/2.5A 3.3V/2.5A 5V/2.5A 6V/2.3A 9V/1.6A 10V/1.5A 12V/1.25A 15V/1A |
UL, cUL, PSE,FCC CE, CB BSMI |
60.2*44*26.5 |
| 15W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.3A |
QIW-15W-0325B QIW-15W-3325B QIW-15W-0525B QIW-15W-0623B QIW-15W-0916B QIW-15W-1015B QIW-15W-1212B QIW-15W-1510B |
3V/2.5A 3.3V/2.5A 5V/2.5A 6V/2.3A 9V/1.6A 10V/1.5A 12V/1.25A 15V/1A |
UL, cUL, PSE,FCC, CE, CB, BSMI |
60.2*44*26.5 |
| 15W Series |
 |
England |
AC100~240V 50/60Hz 0.3A |
QIW-15W-0325K QIW-15W-3325K QIW-15W-0525K QIW-15W-0623K QIW-15W-0916K QIW-15W-1015K QIW-15W-1212K QIW-15W-1510K |
3V/2.5A 3.3V/2.5A 5V/2.5A 6V/2.3A 9V/1.6A 10V/1.5A 12V/1.25A 15V/1A |
CE | 60.2*49.4*26.5 |
| 15W Series |
 |
Europe |
AC100~240V 50/60Hz 0.3A |
QIW-15W-0325T QIW-15W-3325T QIW-15W-0525T QIW-15W-0623T QIW-15W-0916T QIW-15W-1015T QIW-15W-1212T QIW-15W-1510T |
3V/2.5A 3.3V/2.5A 5V/2.5A 6V/2.3A 9V/1.6A 10V/1.5A 12V/1.25A 15V/1A |
ITS/GS, CE | 60.2*44*26.5 |
| 15W Series |
 |
China |
AC100~240V 50/60Hz 0.3A |
QIW-15W-0325C QIW-15W-3325C QIW-15W-0525C QIW-15W-0623C QIW-15W-0916C QIW-15W-1015C QIW-15W-1212C QIW-15W-1510C |
3V/2.5A 3.3V/2.5A 5V/2.5A 6V/2.3A 9V/1.6A 10V/1.5A 12V/1.25A 15V/1A |
CCC | 60.2*44*26.5 |
| 15W Series |
 |
Australia |
AC100~240V 50/60Hz 0.3A |
QIW-15W-0325A QIW-15W-3325A QIW-15W-0525A QIW-15W-0623A QIW-15W-0916A QIW-15W-1015A QIW-15W-1212A QIW-15W-1510A |
3V/2.5A 3.3V/2.5A 5V/2.5A 6V/2.3A 9V/1.6A 10V/1.5A 12V/1.25A 15V/1A |
SAA, C-TICK | 60.2*44*26.5 |
| 15W Desktop Series |
 |
USA Japan Canada Europe UK China |
AC100~240V 50/60Hz 0.3A |
QIW-15W-0325I QIW-15W-3325I QIW-15W-0525I QIW-15W-0623I QIW-15W-0916I QIW-15W-1015I QIW-15W-1212I QIW-15W-1510I |
3V/2.5A 3.3V/2.5A 5V/2.5A 6V/2.3A 9V/1.6A 10V/1.5A 12V/1.25A 15V/1A |
UL, cUL, PSE, FCC, CE, GS, CCC, CB |
68.5*50*26.5 |
18W Series
| Output Power | Photos Spec | AC Plug Type | Input Range | Model No. | Output Current | Safety Approvals | Dimension L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| 18W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.35A |
QIW-18W-03wwL QIW-18W-33wwL QIW-18W-50wwL QIW-18W-60wwL QIW-18W-82wwL QIW-18W-90wwL QIW-18W-10wwL QIW-18W-12wwL QIW-18W-14wwL QIW-18W-15wwL QIW-18W-24wwL |
3V/2-3A 3.3V/2-3A 5V/2-3A 6V/1.8-2.8A 8.2V/1.7A 9V/1.3-2A 10V/1.2-1.8A 12V/1-1.5A |
FCC, CE | 66*27.5*60 |
| 18W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.35A |
QIW-18W-03wwR QIW-18W-33wwR QIW-18W-50wwR QIW-18W-60wwR QIW-18W-82wwR QIW-18W-90wwR QIW-18W-10wwR QIW-18W-12wwR QIW-18W-14wwR QIW-18W-15wwR QIW-18W-24wwR |
3V/2-3A 3.3V/2-3A 5V/2-3A 6V/1.8-2.8A 8.2V/1.7A 9V/1.3-2A 10V/1.2-1.8A 12V/1-1.5A 14V/1.2A 15V/0.8-1.2A 24V/0.4-0.7A |
UL, cUL, PSE,FCC CEC |
66*27.5*60 |
| 18W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.35A |
QIW-18W-03wwS QIW-18W-33wwS QIW-18W-50wwS QIW-18W-60wwS QIW-18W-82wwS QIW-18W-90wwS QIW-18W-10wwS QIW-18W-12wwS QIW-18W-14wwS QIW-18W-15wwS QIW-18W-24wwS |
3V/2-3A 3.3V/2-3A 5V/2-3A 6V/1.8-2.8A 8.2V/1.7A 9V/1.3-2A 10V/1.2-1.8A 12V/1-1.5A 14V/1.2A 15V/0.8-1.2A 24V/0.4-0.7A |
UL, cUL, PSE,FCC, CEC |
64*50*26.5 |
| 18W Series |
 |
USA Japan Canada Taiwan |
AC100~240V 50/60Hz 0.35A |
QIW-18W-03wwB QIW-18W-33wwB QIW-18W-50wwB QIW-18W-60wwB QIW-18W-82wwB QIW-18W-90wwB QIW-18W-10wwB QIW-18W-12wwB QIW-18W-14wwB QIW-18W-15wwB QIW-18W-24wwB |
3V/2-3A 3.3V/2-3A 5V/2-3A 6V/1.8-2.8A 8.2V/1.7A 9V/1.3-2A 10V/1.2-1.8A 12V/1-1.5A 14V/1.2A 15V/0.8-1.2A 24V/0.4-0.7A |
UL, cUL, PSE, FCC, CEC |
64*50*26.5 |
| 18W Series |
 |
UK |
AC100~240V 50/60Hz 0.35A |
QIW-18W-03wwK QIW-18W-33wwK QIW-18W-50wwK QIW-18W-60wwK QIW-18W-82wwK QIW-18W-90wwK QIW-18W-10wwK QIW-18W-12wwK QIW-18W-14wwK QIW-18W-15wwK QIW-18W-24wwK |
3V/2-3A 3.3V/2-3A 5V/2-3A 6V/1.8-2.8A 8.2V/1.7A 9V/1.3-2A 10V/1.2-1.8A 12V/1-1.5A 14V/1.2A 15V/0.8-1.2A 24V/0.4-0.7A |
CE, ERP | 64*50*26.5 |
| 18W Series |
 |
Europe |
AC100~240V 50/60Hz 0.35A |
QIW-18W-03wwT QIW-18W-33wwT QIW-18W-50wwT QIW-18W-60wwT QIW-18W-82wwT QIW-18W-90wwT QIW-18W-10wwT QIW-18W-12wwT QIW-18W-14wwT QIW-18W-15wwT QIW-18W-24wwT |
3V/2-3A 3.3V/2-3A 5V/2-3A 6V/1.8-2.8A 8.2V/1.7A 9V/1.3-2A 10V/1.2-1.8A 12V/1-1.5A 14V/1.2A 15V/0.8-1.2A 24V/0.4-0.7A |
UV/GS, CE, ERP |
64*50*26.5 |
| 18W Series |
 |
China |
AC100~240V 50/60Hz 0.35A |
QIW-18W-03wwC QIW-18W-33wwC QIW-18W-50wwC QIW-18W-60wwC QIW-18W-82wwC QIW-18W-90wwC QIW-18W-10wwC QIW-18W-12wwC QIW-18W-14wwC QIW-18W-15wwC QIW-18W-24wwC |
3V/2-3A 3.3V/2-3A 5V/2-3A 6V/1.8-2.8A 8.2V/1.7A 9V/1.3-2A 10V/1.2-1.8A 12V/1-1.5A 14V/1.2A 15V/0.8-1.2A 24V/0.4-0.7A |
CCC | 64*50*26.5 |
| 18W Desktop Series |
 |
USA Japan Canada Europe UK China |
AC100~240V 50/60Hz 0.35A |
QIW-18W-03wwI QIW-18W-33wwI QIW-18W-50wwI QIW-18W-60wwI QIW-18W-82wwI QIW-18W-90wwI QIW-18W-10wwI QIW-18W-12wwI QIW-18W-14wwI QIW-18W-15wwI QIW-18W-24wwI |
3V/2-3A 3.3V/2-3A 5V/2-3A 6V/1.8-2.8A 8.2V/1.7A 9V/1.3-2A 10V/1.2-1.8A 12V/1-1.5A 14V/1.2A 15V/0.8-1.2A 24V/0.4-0.7A |
UL, cUL, PSE, FCC, CE, GS, CCC, CB, ERP, CEC |
68.5*50*26.5 |
24W Series
| Output Power | Photos Spec | AC Plug Type | Input Range | Model No. | Output Current | Safety Approvals | Dimension L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| 24W Series NEW Changeable plugs |
 |
USA Japan Canada Europe England Australia China |
AC100~240V 50/60Hz 0.55A |
QIW-24W-05xxL QIW-24W-06xxL QIW-24W-09xxL QIW-24W-10xxL QIW-24W-12xxL QIW-24W-24xxL |
5V/3.1-4.0A 6V/2.9-3.8A 9V/2.1-2.6A 10V/1.9-2.4A 12V/1.6-2.0A 24V/0.8-1.0A |
FCC, CE | 96*43.7*29.8 |

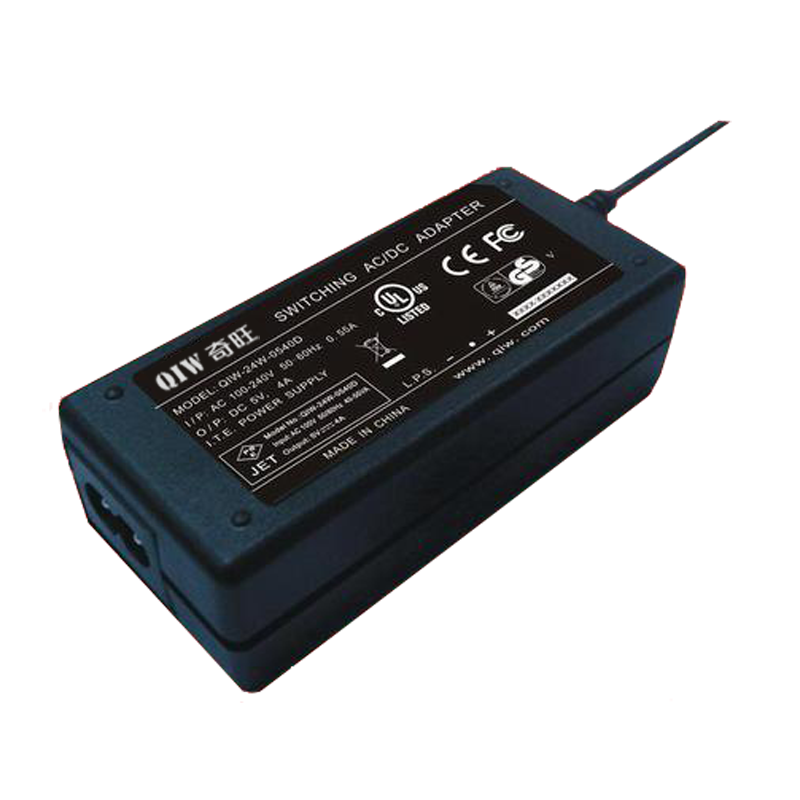

| 24W Desktop Series |
 |
USA Japan Canada Europe England Australia China |
AC100~240V 50/60Hz 0.55A |
QIW-24W-05xxI QIW-24W-06xxI QIW-24W-09xxI QIW-24W-10xxI QIW-24W-12xxI QIW-24W-24xxI |
5V/3.1-4.0A 6V/2.9-3.8A 9V/2.1-2.6A 10V/1.9-2.4A 12V/1.6-2.0A 24V/0.8-1.0A |
UL, cUL, PSE, CE, GS, BS, CCC, FCC, SAA, C-Tick, EK, BSMI, CB, ERP, CEC |
96*43.7*27.8 |
| 24W Series |
 |
USA Japan Canada |
AC100~240V 50/60Hz 0.55A |
QIW-24W-05xxS QIW-24W-06xxS QIW-24W-09xxS QIW-24W-10xxS QIW-24W-12xxS QIW-24W-24xxS |
5V/3.1-4.0A 6V/2.9-3.8A 9V/2.1-2.6A 10V/1.9-2.4A 12V/1.6-2.0A 24V/0.8-1.0A |
UL, cUL, PSE,FCC |
97*45*35 |
| 24W Series |
|
USA Japan Canada |
AC100~240V 50/60Hz 0.55A |
QIW-24W-05xxW QIW-24W-06xxW QIW-24W-09xxW QIW-24W-10xxW QIW-24W-12xxW QIW-24W-24xxW |
5V/3.1-4.0A 6V/2.9-3.8A 9V/2.1-2.6A 10V/1.9-2.4A 12V/1.6-2.0A 24V/0.8-1.0A |
UL, cUL, PSE, FCC |
105*44.6*29 |
| 24W Series |
 |
Europe |
AC100~240V 50/60Hz 0.55A |
QIW-24W-05xxT QIW-24W-06xxT QIW-24W-09xxT QIW-24W-10xxT QIW-24W-12xxT QIW-24W-24xxT |
5V/3.1-4.0A 6V/2.9-3.8A 9V/2.1-2.6A 10V/1.9-2.4A 12V/1.6-2.0A 24V/0.8-1.0A |
TUV/GS, CE, ERP |
97*43*38 |
| 24W Series |
 |
UK |
AC100~240V 50/60Hz 0.55A |
QIW-24W-05xxK QIW-24W-06xxK QIW-24W-09xxK QIW-24W-10xxK QIW-24W-12xxK QIW-24W-24xxK |
5V/3.1-4.0A 6V/2.9-3.8A 9V/2.1-2.6A 10V/1.9-2.4A 12V/1.6-2.0A 24V/0.8-1.0A |
CE, ERP | 97*46*35.5 |
36W Series
| Output Power | Photos Spec | AC Plug Type | Input Range | Model No. | Output Current | Safety Approvals | Dimension L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| 36W Series NEW Changeable plugs |
 |
USA Japan Canada Europe England Australia China |
AC100~240V 50/60Hz 1.2A |
QIW-36W-1230L QIW-36W-1524L QIW-36W-1623L QIW-36W-1920L QIW-36W-1925L QIW-36W-2415L |
12V/3A 15V/2.4A 16V/2.3A 19V/2A 19.5V/2A 24V/1.5A |
FCC, CE | 96*43.7*29.8 |
| 36W Desktop Series |
 |
USA Japan Canada Europe UK Australia |
AC100~240V 50/60Hz 1.2A |
QIW-36W-12xxI QIW-36W-15xxI QIW-36W-16xxI QIW-36W-19xxI QIW-36W-195xxI QIW-36W-24xxI |
12V/2.1-3.0A 15V/1.7-2.4A 16V/1.6-2.3A 19V/1.3-2.0A 19.5V/1.3-2A 24V/1.1-1.5A |
UL, cUL, PSE, CE, GS, BS, CCC, FCC, SAA, C-Tick, EK, BSMI, CB, ERP, CEC |
96*43.7*27.8 |
| 36W Series |
 |
USA Japan Canada |
AC100~240V 50/60Hz 1.2A |
QIW-36W-12xxS QIW-36W-15xxS QIW-36W-16xxS QIW-36W-19xxS QIW-36W-195xxS QIW-36W-24xxS |
12V/2.1-3.0A 15V/1.7-2.4A 16V/1.6-2.3A 19V/1.3-2.0A 19.5V/1.3-2A 24V/1.1-1.5A |
UL, cUL, PSE, CEC |
97*45*35 |
| 36W Series |
 |
USA Japan Canada |
AC100~240V 50/60Hz 1.2A |
QIW-36W-12xxW QIW-36W-15xxW QIW-36W-16xxW QIW-36W-19xxW QIW-36W-195xxW QIW-36W-24xxW |
12V/2.1-3.0A 15V/1.7-2.4A 16V/1.6-2.3A 19V/1.3-2.0A 19.5V/1.3-2A 24V/1.1-1.5A |
UL, cUL, PSE, CEC |
105*44.6*29 |
| 36W Series |
 |
Europe |
AC100~240V 50/60Hz 1.2A |
QIW-36W-12xxT QIW-36W-15xxT QIW-36W-16xxT QIW-36W-19xxT QIW-36W-195xxT QIW-36W-24xxT |
12V/2.1-3.0A 15V/1.7-2.4A 16V/1.6-2.3A 19V/1.3-2.0A 19.5V/1.3-2A 24V/1.1-1.5A |
TUV/GS, CE, ERP |
97*43*38 |
| 36W Series |
 |
UK |
AC100~240V 50/60Hz 1.2A |
QIW-36W-12xxK QIW-36W-15xxK QIW-36W-16xxK QIW-36W-19xxK QIW-36W-195xxK QIW-36W-24xxK |
12V/2.1-3.0A 15V/1.7-2.4A 16V/1.6-2.3A 19V/1.3-2.0A 19.5V/1.3-2A 24V/1.1-1.5A |
CE, ERP | 97*46*35.5 |
45W Series
| Output Power | Photos Spec | AC Plug Type | Input Range | Model No. | Output Current | Safety Approvals | Dimension L*W*H(mm) |
|---|---|---|---|---|---|---|---|
| 45W Series NEW Changeable plugs |
 |
USA Japan Canada Europe England Australia China |
AC100~240V 50/60Hz 1.2A |
QQIW-45W-09xxL QIW-45W-12xxL QIW-45W-15xxL QIW-45W-16xxL QIW-45W-19xxL QIW-45W-195xxL QIW-45W-24xxL |
9V/3.0-4.5A 12V/3.1-3.8A 15V/2.5-3.0A 16V/2.4-2.8A 19V/2.1-2.3A 19.5V/2.1-2.3A 24V/1.5-1.9A |
FCC, CE | 96*43.7*29.8 |
| 45W Desktop Series |
 |
USA Japan Canada Europe UK Australia |
AC100~240V 50/60Hz 1.2A |
QIW-45W-09xxI QIW-45W-12xxI QIW-45W-15xxI QIW-45W-16xxI QIW-45W-19xxI QIW-45W-195xxI QIW-45W-24xxI |
9V/3.0-4.5A 12V/3.1-3.8A 15V/2.5-3.0A 16V/2.4-2.8A 19V/2.1-2.3A 19.5V/2.1-2.3A 24V/1.5-1.9A |
UL, cUL, PSE, CE, GS, BS, CCC, FCC, SAA, C-Tick, EK, BSMI, CB, ERP, CEC |
96*43.7*27.8 |
| 45W Series |
 |
USA Japan Canada |
AC100~240V 50/60Hz 1.2A |
QIW-45W-09xxS QIW-45W-12xxS QIW-45W-15xxS QIW-45W-16xxS QIW-45W-19xxS QIW-45W-195xxS QIW-45W-24xxS |
9V/3.0-4.5A 12V/3.1-3.8A 15V/2.5-3.0A 16V/2.4-2.8A 19V/2.1-2.3A 19.5V/2.1-2.3A 24V/1.5-1.9A |
UL, cUL, PSE, CEC |
97*45*35 |
| 45W Series |
|
USA Japan Canada |
AC100~240V 50/60Hz 1.2A |
QIW-45W-09xxW QIW-45W-12xxW QIW-45W-15xxW QIW-45W-16xxW QIW-45W-19xxW QIW-45W-195xxW QIW-45W-24xxW |
9V/3.0-4.5A 12V/3.1-3.8A 15V/2.5-3.0A 16V/2.4-2.8A 19V/2.1-2.3A 19.5V/2.1-2.3A 24V/1.5-1.9A |
UL, cUL, PSE, CEC |
105*44.6*29 |
| 45W Series |
 |
Europe |
AC100~240V 50/60Hz 1.2A |
QIW-45W-09xxT QIW-45W-12xxT QIW-45W-15xxT QIW-45W-16xxT QIW-45W-19xxT QIW-45W-195xxT QIW-45W-24xxT |
9V/3.0-4.5A 12V/3.1-3.8A 15V/2.5-3.0A 16V/2.4-2.8A 19V/2.1-2.3A 19.5V/2.1-2.3A 24V/1.5-1.9A |
TUV/GS, CE, ERP |
97*43*38 |
| 45W Series |
 |
UK |
AC100~240V 50/60Hz 1.2A |
QIW-45W-09xxK QIW-45W-12xxK QIW-45W-15xxK QIW-45W-16xxK QIW-45W-19xxK QIW-45W-195xxK QIW-45W-24xxK |
9V/3.0-4.5A 12V/3.1-3.8A 15V/2.5-3.0A 16V/2.4-2.8A 19V/2.1-2.3A 19.5V/2.1-2.3A 24V/1.5-1.9A |
CE, ERP | 97*46*35.5 |
